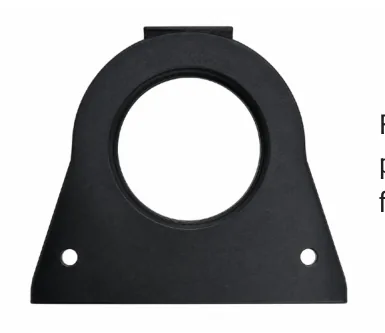

CBCT (ZCT) for EOCR 3EZ
Concord · Current Transformers
Core-balance (zero-sequence) current transformers for use with the EOCR 3EZ only, for measuring leakage current and ground faults.
| Primary GF current | 200 mA |
| Secondary GF current | 1.5 mA |
| Tolerance | ±10% |
| Burden | 10 VA |
| Rated voltage | 600 V AC |
| Dielectric strength | 2 kV |
All specifications (8)
| Type | Hole dimension |
|---|---|
| ZCT-35 | 45 mm hole |
| ZCT-80 | 80 mm hole |
| ZCT-120 | 120 mm hole |
| Primary GF current | 200 mA |
| Secondary GF current | 1.5 mA |
| Tolerance | ±10% |
| Burden | 10 VA |
| Rated voltage | 600 V AC |
| Dielectric strength | 2 kV |
| Insulation | 10 MΩ (500 V AC megger) |
| Mounting | Base mounting inside panel |
For dimensions, please contact us.
