Our Products › Motor Protection Relays

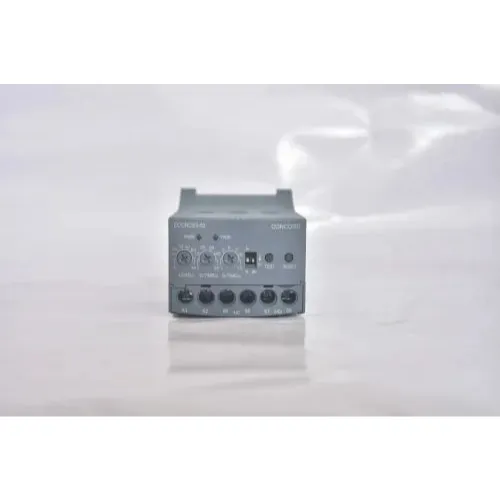

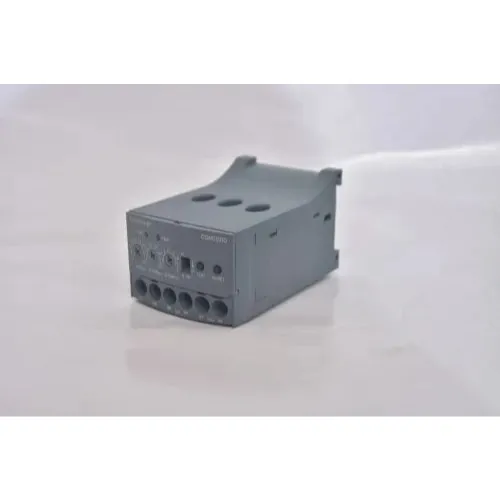

Digital Motor Protection Relay
Concord EOCR · Motor Protection
A microprocessor-based digital relay that protects motors against overcurrent, undercurrent, phase loss and locked rotor. It covers a wide 0.5–600 A range (using external CTs), mounts on a 35 mm DIN rail and has a DPDT output, making it a good fit for pumps, compressors and general industrial motors.
| Mounting Type | DIN Rail |
| Current Rating | 6 A |
| Number Of Poles | 2 Pole |
| Brand | Concord |
| Type | Current Relay |
| Voltage | 230 V |
Explore the full Concord EOCR range: EOCR SS, EOCR SSD, EOCR DS and EOCR 3DE / 3EZ.
All specifications (15)
| Mounting Type | DIN Rail |
| Current Rating | 6 A |
| Number Of Poles | 2 Pole |
| Brand | Concord |
| Type | Current Relay |
| Voltage | 230 V |
| Current | 5-60 A |
| Frequency | 50-60 Hz |
| Current (Amps) | 0.5 A – 600 A |
| Application | Industries |
| Mounting | 35 mm DIN Rail |
| Operating Temperature | -10 to 60 °C |
| Voltage Type | AC/DC |
| Relay Type | Digital |
| Contact Form | DPDT |
